BLAUPUNKT 90CM VERTICAL HOOD

Output, consumption

• Voltage: 220–240 V
• Total connected load: 225,4 W
• Average power consumption:49.6 kWh / year *
• Noise min./max. normal level: 50 / 60 dB*
• Fan output max. normal level / intensive level*: in extraction mode max. 540 m3/h / 670 m3/h, in circulation mode max. 400 m3/h / 475 m3/h

* According to EU Regulation No. 65/2014 / Fan capacity according to EN 61591

Design, comfort

• Stainless steel and black glass
• For wall installation above cooking zones
• Multi Control
• Touch Control
• Optional extraction or circulation mode (for circulation mode a carbon filter is required)
• Electronic control
• 4-level fan output (3 power levels + 1 intensive level) adjustable via Multi Control
• Intensive levels with automatic reset
• Powerful and quiet blower
• Uniform, bright lighting with 2 x 2.7 W LED modules
• Illuminance: 152 Lux
• Optional extendible Multi Control bfunction: LED light with adjustable brightness and colour temperature
• Heat sensor for automatic mode
• Colour temperature 4,000 K preset
• Metallic grease filter, dishwasher-safe

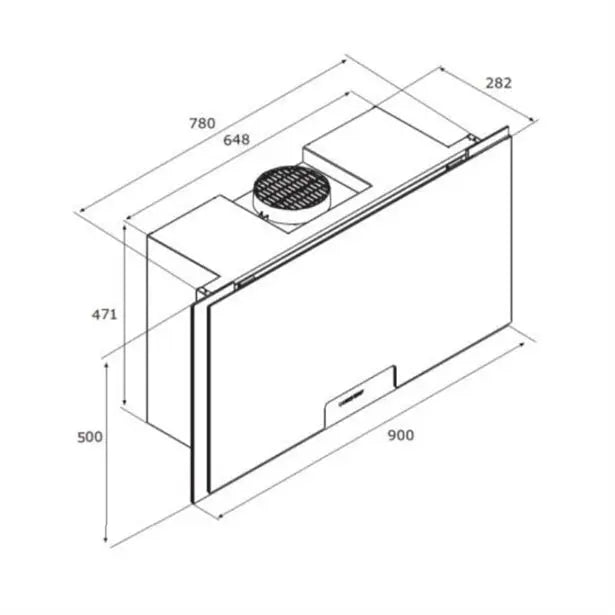

Dimensions H x W x D

• Appliance dimensions, extraction (with shaft): 92.6–127.1 x 90.0 x 28.2 cm
• Appliance dimensions, circulation: 47.1 x 90.0 x 28.2 cm

Downloads

Instruction Manual

Technical Data Sheet

Technical Drawing
