BLAUPUNKT 90CM SLIDEOUT UNDERMOUNT RANGE HOOD (STAINLESS STEEL)

Output, consumption

• Voltage: 220–240 V
• Total connected load: 118 W
• Average power consumption: 38.6 kWh / year*
• Noise min. / max. normal level: 54 / 67 dB*

Fan power *

• In extraction mode max. 340 m3/h
• In circulation mode max. 120 m3/h

* According to EU Regulation no. 65 / 2014 / fan power according to EN 61591

Design, comfort

• Optional extraction or circulation mode (activated carbon filter required for circulation mode)
• For wall cabinet 90 cm
• Telescopic extension without panel
• Panel from original light strip from kitchen furniture manufacturer
• 3-level fan output controllable via slide switch
• Automatic switch-on and switch-off by pressing the moving filter surface
• Uniform, bright lighting with 2 x 4 W LED lamps
• Illuminance: 100 Lux
• Colour temperature 3,000 K
• Metallic grease filter, dishwasher-safe

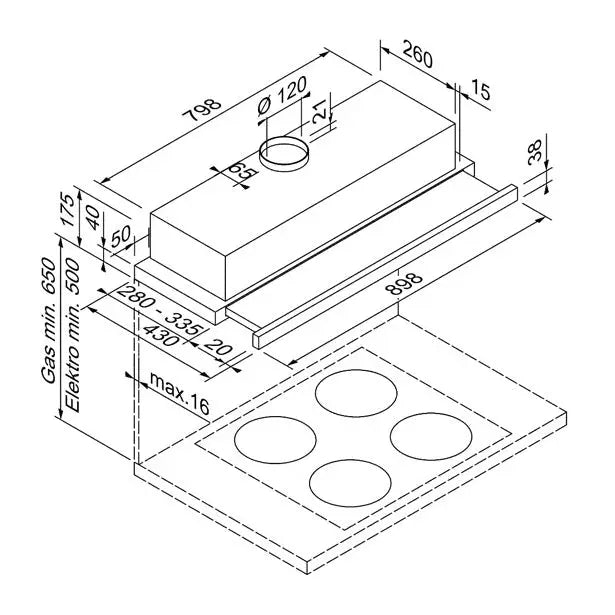

Dimensions H x W x D

• Installation dimensions: 16.2 x 52.6 x 29.0 cm

Downloads

Instruction Manual

Technical Drawing

Technical Data Sheet
