BLAUPUNKT 90CM CEILING CASSETTE (STAINLESS STEEL)

• New Design
• Low Installation Depth
• Improved energy efficiency

Output, consumption

• Voltage: 220 – 240 V
• Total connected load: 150.4 W
• Average power consumption: 38.3 kWh / year*
• Fan efficiency class: A*
• Light efficiency class: B*
• Grease filter efficiency class: E*
• Noise min. / max. Normal level: 40 / 65 dB*
• Fan output max. Normal level / Intensive level*:
• In extraction mode 490 m3 / h / 700 m3 / h
• In circulation mode 300 m3 / h / 400 m3 / h

Design, comfort

• Stainless steel

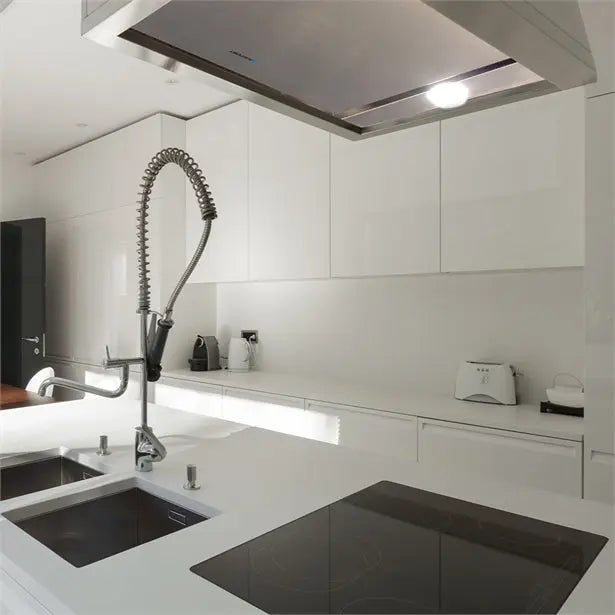

• For ceiling installation above kitchen islands
• Multi Control
• Optional extraction or circulation mode (carbon filter required for circulation mode)
• Electronic control
• 4-level fan power (3 power levels + 1 intensive level) controllable through Multi Control
• Intensive levels with automatic reset
• Filter saturation display
• Powerful and quiet blower
• Uniform, bright lighting with 2 × 2.7 W LED modules
• Optional extendible Multi Control function: LED light with adjustable brightness and colour temperature
• Illuminance: 111 lux
• Colour temperature: 4,000 K preset
• Metal grease filter, dishwasher-safe

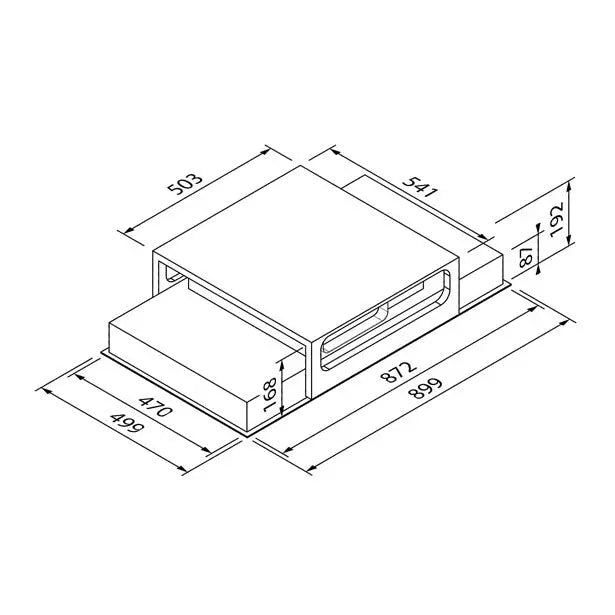

Dimensions H × W × D

• Appliance dimensions: max. 19.2 × 89.9 × 49.9 cm

Downloads

Installation Manual

User Manual

Technical Data Sheet

Technical Drawing
